More Information
| Manufacturer | PACOM VIGIL CORE |
|---|---|
| Manufacturer's Part Number | 320 200 105 |
| Length (mm) (B) | 56 |
| Width (mm) (D) | 80 |
| Technical Data | Card Reader Interface Expansion Card |
| product range | Vigil Core |
File Downloads
(Size: 150.6 KB)

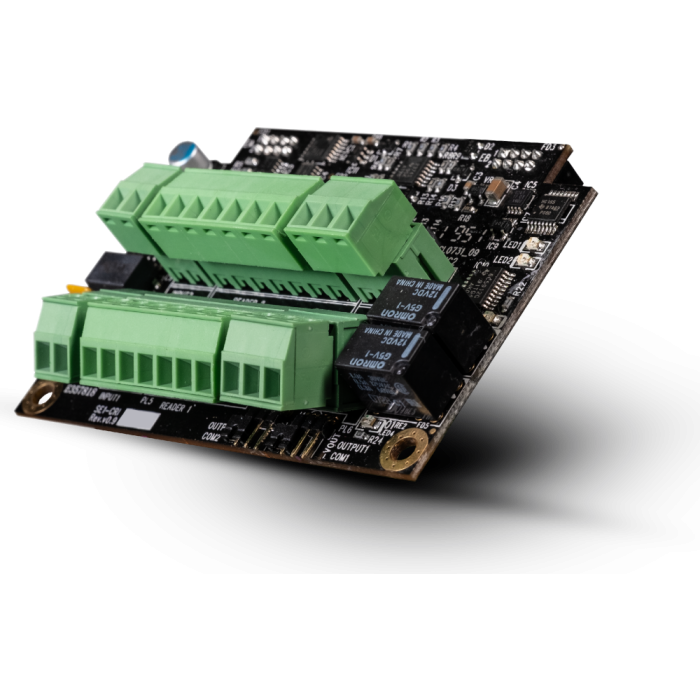

The Card Reader Interface Expansion Card provides additional control of up to 2 doors. It includes
built-in dual Wiegand reader support for IN/OUT readers on the door and has 2 relay outputs.
There is also 2 additional digital or analog inputs which are software configurable and can be used for
break glass and door contact functions. Wiegand inputs can be software programmed to have a
pullup resistor for situations where the Wiegand inputs are driven by a voltage.
