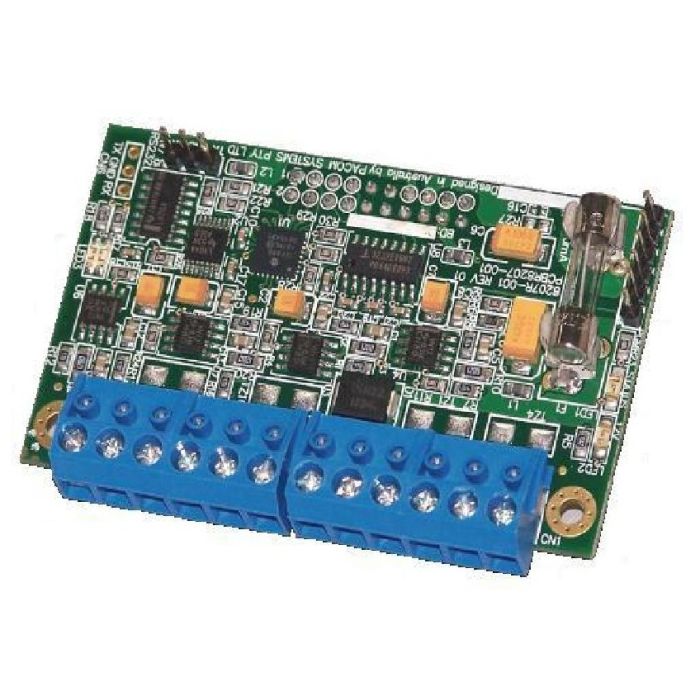

8207 Star Coupler Expansion Module
In stock
SKU
300 041 107
Expansionskort till 8000-seriens centralapparater. Stjärnkopplingskort används till att stjärnkoppla en slinga på fyra utgångar.
8207 Star Coupler Module for 8000 series Field Controllers. This module enables an on-board RS485 expansion port to be split into 4 RS485 lines. This enables up to 32 additional Pacom I/O devices to be connected to a controller in a star configuration
| Color | Green |
|---|---|
| Length (mm) (B) | 76 |
| Height (mm) (H) | 45 |
| Width (mm) (D) | 18 |
| Supplier's Part Number | 8207R-001-UL |
| Power Draw | 25mA |
| Product Range (Systemtillhörighet) | PACOM |
| Technical Data | Enables RS485 cabling in a "star" configuration with up to four different paths (maximum of 32 devices in total). Compatible with PACOM 8001/8002 and 8003 controllers. DIMENSIONS 76mm x 45mm x 18mm (3.0 x 1.8 x 0.7”) POWER CONSUMPTION 25mA OPERATING ENVIRONMENT EU:-10 to +55°C (14 to 131°F), 20 to 85% ±5% maximum humidity (non-condensing) @ 30°C (86°F) UL:0 to 50°C (32 to 122°F), 20 to 85% ±5% maximum humidity (non-condensing) @ 30°C (86°F) APPROVALS ANSI/CIA CP-01, AS/NZS 60950.1 A1+A2+A3, AS/NZS CISPR22 Class B/A, EN 50130-4+A1+A2 ECII SG3, EN 50130-5 ECII SG3, EN 50131-1 ECII SG3, EN 50131-3 ECII SG3, EN 55022 Class A/B, EN 60950-1+A1+A11+A12, EN 61000-3-2+A1+A2, EN 61000-3-3+A1+A2, FCC 47 Part |
| product range | PACOM Hardware |
| Weight | 0.200000 |
